Chlorine

Atomic number
17
Atomic mass
35.45
Configuration
[Ne] 3s2 3p5
Group
17

Chlorine (Cl) is a reactive nonmetal with atomic number 17 and an atomic mass of 35.45. Its electron configuration is [Ne] 3s2 3p5, which gives it 7 valence electrons.

Interactive periodic tableOrbital shapesMolar mass calculator

Chlorine key data

Identity
Symbol Cl
Atomic number 17
Atomic mass (standard atomic weight) 35.45
Molar mass 35.45 g/mol
Particles
Protons 17
Neutrons (most abundant isotope, chlorine-35) 18
Abundance of chlorine-35 75.76%
Electrons (neutral atom) 17
Valence electrons 7
Placement
Category Reactive nonmetal
Period 3
Group 17
Block p-block
Electron configuration
Noble gas notation [Ne] 3s2 3p5
Full electron configuration 1s2 2s2 2p6 3s2 3p5
Electrons per shell 2, 8, 7

Atomic mass: IUPAC CIAAW abridged standard atomic weights, 2024. Most abundant isotope: NIST Atomic Weights and Isotopic Compositions.

The values are facts and free to use; this page’s selection and presentation are © 2026 ScienceQuest.

Updated

Measured properties of chlorine

From PubChem, the US National Institutes of Health. Public domain. The electron affinity is the measured value for chlorine, from Wikipedia’s electron affinity data page, in place of PubChem’s 3.617 eV.

Melting point 171.65 K (−101.5 °C), 94th of 103 by melting point
Boiling point 239.11 K (−34.04 °C), 83rd of 93 by boiling point
Density 0.003214 g/cm³, 89th of 96 by density
State at room temperature Gas
Electronegativity 3.16 (Pauling), 3rd of 95 by electronegativity
Van der Waals radius 175 pm, 84th of 99 by atomic radius
First ionisation energy 12.968 eV (1251.2 kJ/mol), 9th of 102 by first ionisation energy
Electron affinity 3.6127 eV (348.57 kJ/mol), 1st of 57 by electron affinity
Common oxidation states +7, +5, +1, −1
Discovered 1774

Each rank counts down from the highest value, among the elements PubChem’s table gives one for, and links to that property ranked across the whole table. All of them are collected under periodic trends.

Chlorine electron configuration

The full electron configuration of chlorine is 1s2 2s2 2p6 3s2 3p5. With the noble-gas core collapsed it is [Ne] 3s2 3p5, and the outermost subshell is 3p5.

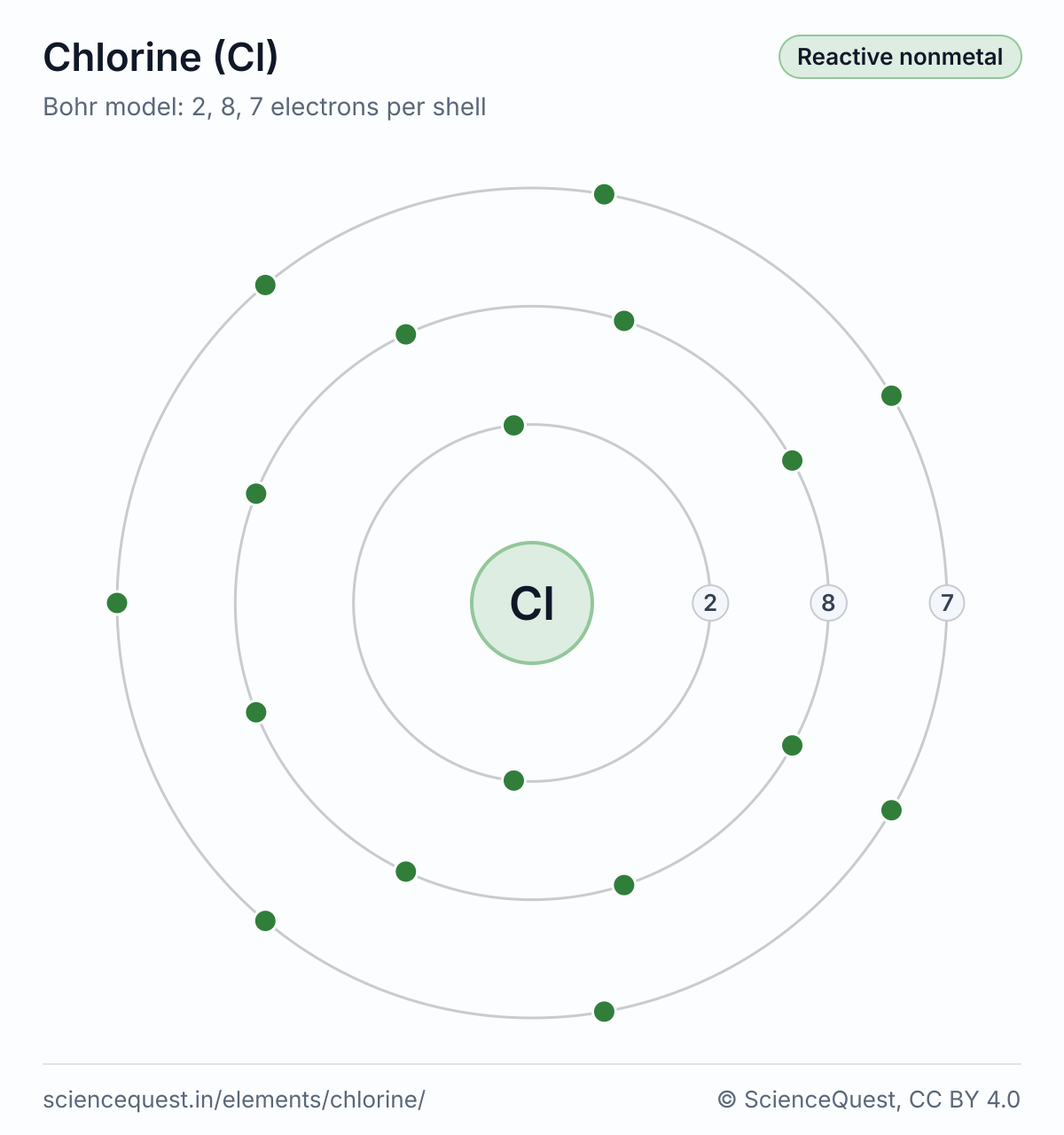

Bohr model of chlorine (Cl): a nucleus and three shells holding 2, 8 and 7 electrons from the inside out.Bohr model of chlorine (Cl): a nucleus and three shells holding 2, 8 and 7 electrons from the inside out.
Bohr model of chlorine (Cl). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

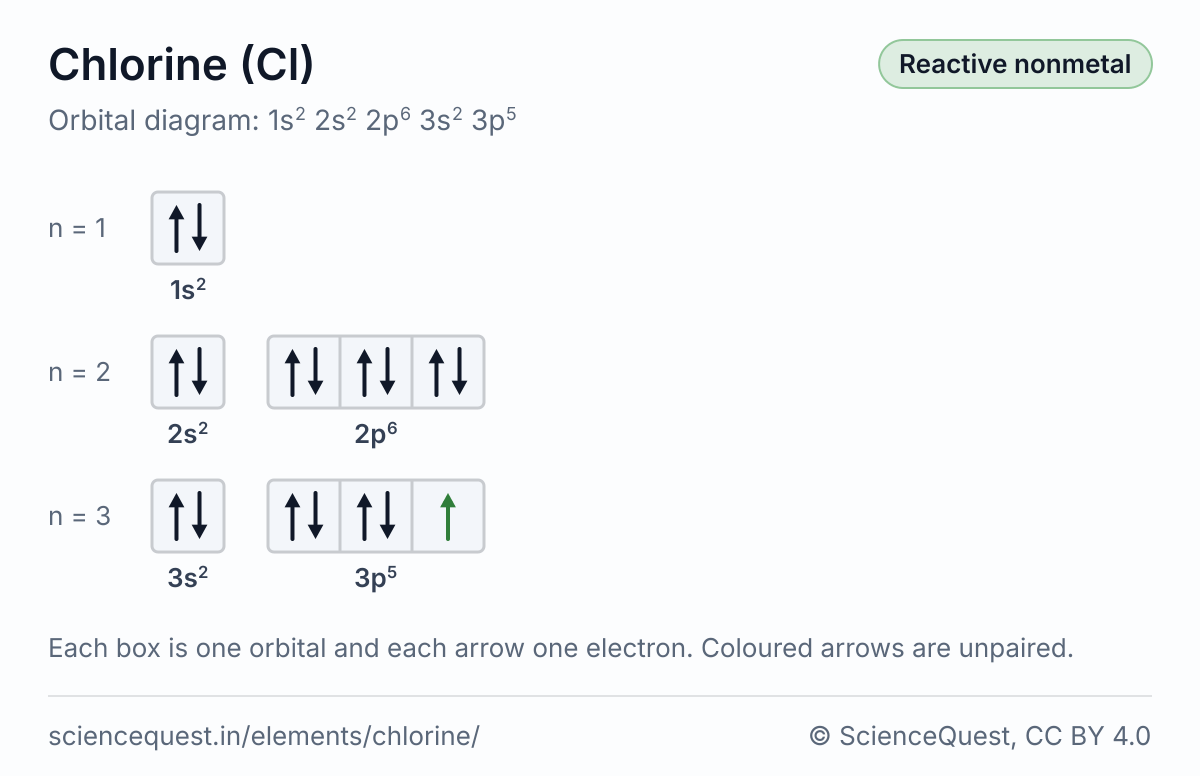

Orbital box diagram of chlorine (Cl), 1s2 2s2 2p6 3s2 3p5: one box per orbital, filled by Hund’s rule, showing one unpaired electron, in 3p.Orbital box diagram of chlorine (Cl), 1s2 2s2 2p6 3s2 3p5: one box per orbital, filled by Hund’s rule, showing one unpaired electron, in 3p.
Orbital diagram of chlorine (Cl). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

Why group and block follow from this is set out in how the periodic table maps electron configuration, and the electron configuration of every element is listed on one page. To write the configuration of an ion of chlorine, use the electron configuration calculator.

Electron configurations of chlorine ions

The table gives the chlorine atom and the ion for each common oxidation state listed above, in its ground state as a free ion in the gas phase.

Atom or ion Electrons Configuration Unpaired electrons
Cl (neutral atom) 17 [Ne] 3s2 3p5 1
Cl⁺ 16 [Ne] 3s2 3p4 2
Cl⁵⁺ 12 [Ne] 3s2 0
Cl⁷⁺ 10 [He] 2s2 2p6 0
Cl⁻ 18 [Ne] 3s2 3p6 0

Every positive ion matches its ground state in the NIST Atomic Spectra Database. Unpaired electrons are counted by Hund’s rule.

Cl⁻ holds together as a free ion: chlorine releases 3.6127 eV when it takes the extra electron, the electron affinity above.

Cl⁺ has the same electron configuration as a sulfur atom, Cl⁵⁺ as a magnesium atom, Cl⁷⁺ as a neon atom and Cl⁻ as an argon atom.

Standard reduction potential of chlorine

The table gives the only half-reaction in the standard reduction potentials table with chlorine as the element on one side or as a monatomic ion on both, and its E° at 25 °C against the standard hydrogen electrode.

Half-reaction E°, volts
Cl₂ + 2e⁻ → 2Cl⁻ +1.36

Half-reactions with chlorine inside a compound or a polyatomic ion, such as AgCl, are in the full table.

Chlorine: isotopes, discovery and uses

Natural isotopes of chlorine
Isotope Atomic mass (Da) Share of atoms (amount fraction) Half-life
Chlorine-35 34.968 8527(3) [0.755, 0.761] stable
Chlorine-37 36.965 9026(4) [0.239, 0.245] stable

Atomic masses and shares of atoms: IUPAC CIAAW. Half-lives: NUBASE2020 (Kondev et al., Chin. Phys. C 45, 030001 (2021)).

Standard atomic weight [35.446, 35.457], the CIAAW value since 2009 (CIAAW).

Discovered
Carl-Wilhelm Scheele, 1774 (CIAAW)
Name
From the Greek chloros for “pale green” or “greenish yellow” colour of the element (CIAAW)
Uses
Chlorine: used in many industrial processes, such as in the production of paper products, plastics, dyes, textiles, medicines, antiseptics, insecticides, solvents and paints (Jefferson Lab via PubChem)
Isotopes in use
Forensic science and anthropology: Analyses of chlorine isotopes and other environmental tracers can help to identify whether an environmental contaminant is of anthropogenic origin or naturally occurring (IUPAC Periodic Table of the Elements and Isotopes via PubChem)
Estimated crustal abundance
145 mg/kg (Jefferson Lab via PubChem)

Read at the sources on 26 October 2026. “via PubChem” marks text PubChem republishes from the publisher named.

Mass of one chlorine atom

A molar mass is grams per mole, so dividing by the Avogadro constant gives the average mass of chlorine’s atoms across its natural isotopes, and the reciprocal gives how many atoms sit in a gram.

Mass of one atom

  1. one atom = 35.45 / (6.02214076 × 10²³)
  2. = 5.8866 × 10⁻²³ g

Atoms in one gram

  1. atoms per gram = 6.02214076 × 10²³ / 35.45
  2. = 1.6988 × 10²² atoms

Chlorine on the periodic table

Chlorine is in period 3, group 17, in the p-block.

The other elements of group 17 are fluorine, bromine, iodine, astatine and tennessine.

In group 17, chlorine has the highest electron affinity. The comparison leaves out tennessine, of which only a few atoms have ever been made. Across period 3, it has the highest electronegativity.

Against the usual trend down a group, chlorine has a higher electron affinity (3.6127 against 3.40119 eV) than fluorine above it.

The rest of period 3
