Niobium
- Atomic number
- 41
- Atomic mass
- 92.906
- Configuration
- [Kr] 4d4 5s1
- Category
- Transition metal
- Group
- 5
Niobium (Nb) is a transition metal with atomic number 41 and an atomic mass of 92.906. Its electron configuration is [Kr] 4d4 5s1.
Interactive periodic tableOrbital shapesMolar mass calculator
Niobium key data
| Symbol | Nb |
|---|---|
| Atomic number | 41 |
| Atomic mass (standard atomic weight) | 92.906 |
| Molar mass | 92.906 g/mol |
| Protons | 41 |
|---|---|
| Neutrons (most abundant isotope, niobium-93) | 52 |
| Abundance of niobium-93 | 100% |
| Electrons (neutral atom) | 41 |
| Category | Transition metal |
|---|---|
| Period | 5 |
| Group | 5 |
| Block | d-block |
| Noble gas notation | [Kr] 4d4 5s1 |
|---|---|
| Full electron configuration | 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d4 5s1 |

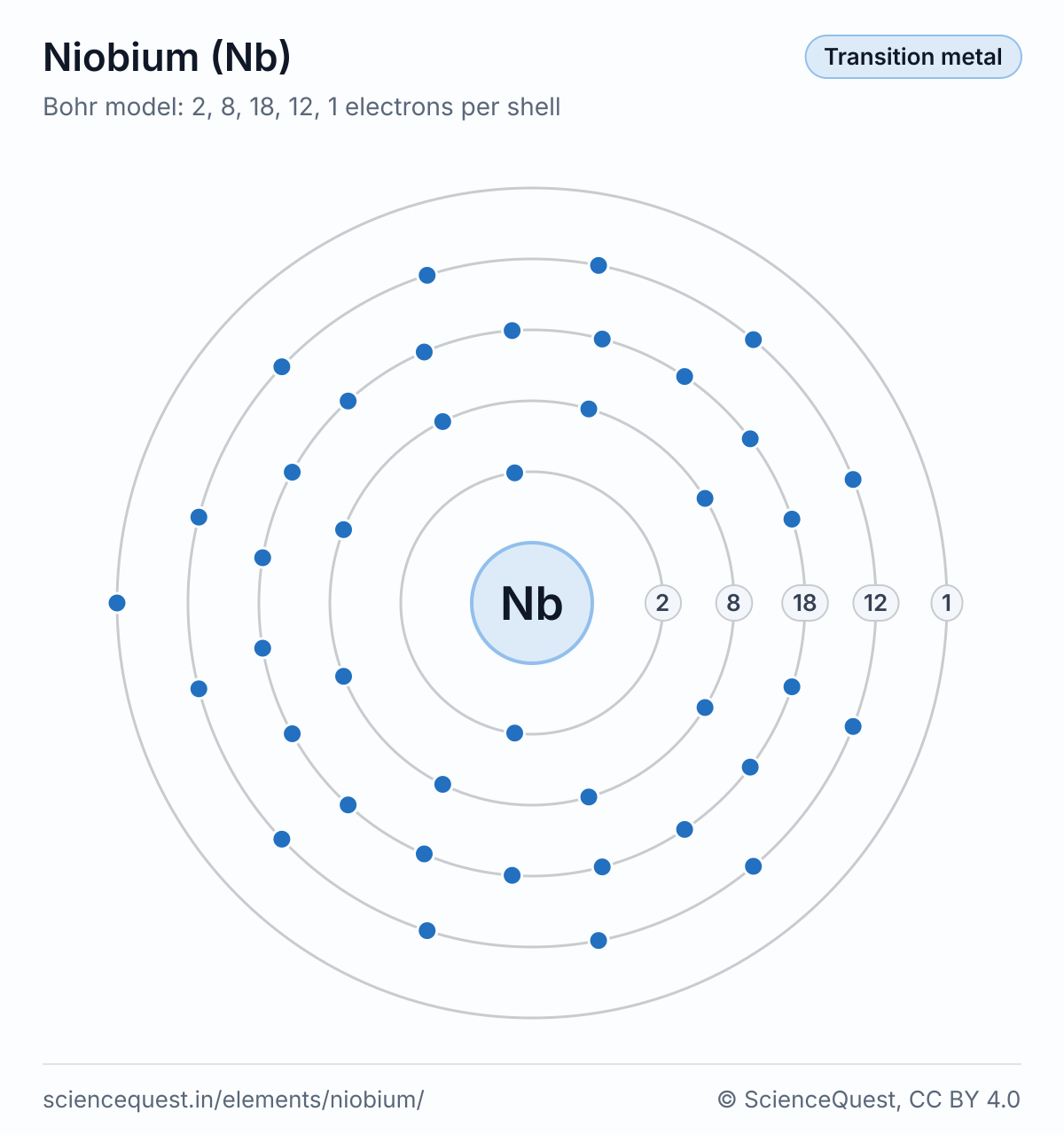

| Electrons per shell | 2, 8, 18, 12, 1 |
Atomic mass: IUPAC CIAAW abridged standard atomic weights, 2024. Most abundant isotope: NIST Atomic Weights and Isotopic Compositions.
The values are facts and free to use; this page’s selection and presentation are © 2026 ScienceQuest.
Updated
Measured properties of niobium
From PubChem, the US National Institutes of Health. Public domain. The electron affinity is the measured value for niobium, from Wikipedia’s electron affinity data page, in place of PubChem’s 0.893 eV.
| Melting point | 2750 K (2476.9 °C), 7th of 103 by melting point |
|---|---|
| Boiling point | 5017 K (4743.9 °C), 6th of 93 by boiling point |
| Density | 8.57 g/cm³, 37th of 96 by density |
| State at room temperature | Solid |
| Electronegativity | 1.6 (Pauling), 50th of 95 by electronegativity |
| Van der Waals radius | 207 pm, joint 52nd of 99 by atomic radius |
| First ionisation energy | 6.759 eV (652.1 kJ/mol), 55th of 102 by first ionisation energy |
| Electron affinity | 0.9174 eV (88.52 kJ/mol), 26th of 57 by electron affinity |
| Common oxidation states | +5, +3 |
| Discovered | 1801 |
Each rank counts down from the highest value, among the elements PubChem’s table gives one for, and links to that property ranked across the whole table. All of them are collected under periodic trends.
Niobium electron configuration
The full electron configuration of niobium is 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d4 5s1. With the noble-gas core collapsed it is [Kr] 4d4 5s1, and the outermost subshell is 5s1.
Niobium does not follow the simple filling order. Its measured configuration differs from the one the aufbau rule predicts, because its 4d and 5s subshells lie so close in energy that the simple filling order cannot predict which arrangement is lowest. This is a measured fact about the atom rather than an exception to be derived.

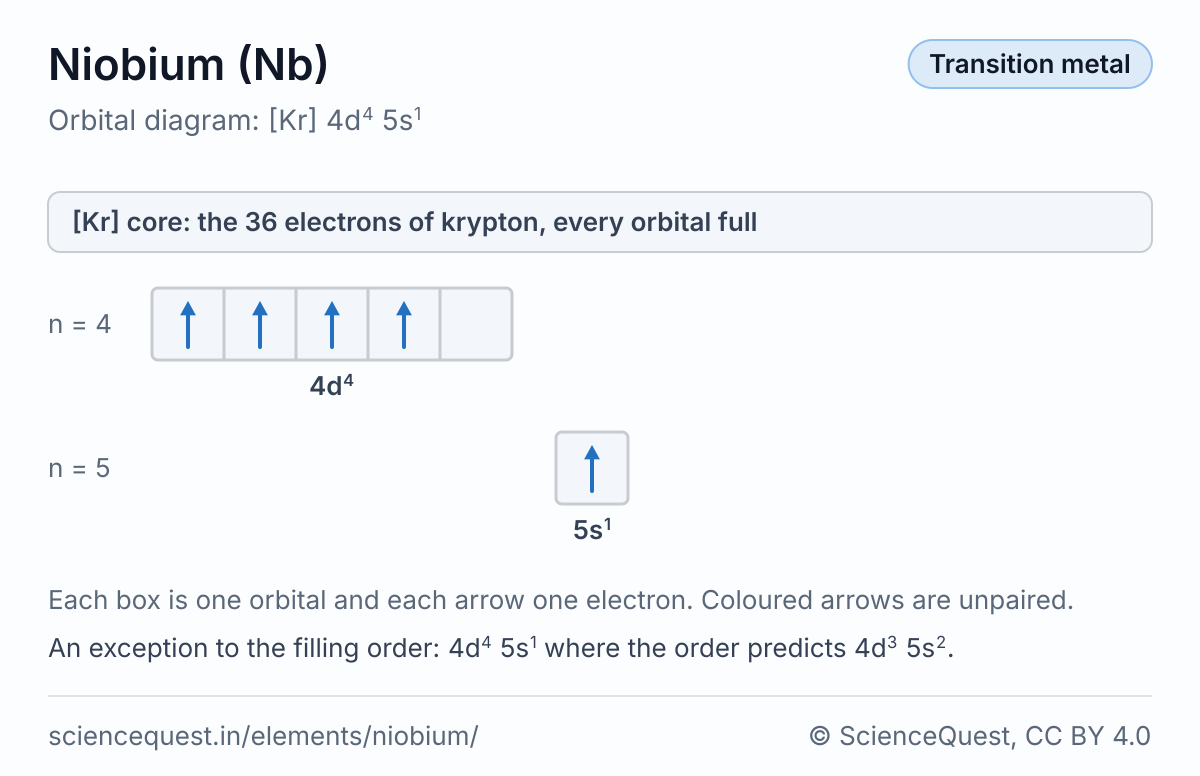

![Orbital box diagram of niobium (Nb), [Kr] 4d4 5s1, with the krypton core drawn as one bar: one box per orbital, filled by Hund’s rule, showing five unpaired electrons, in 4d and 5s.](/images/elements/niobium-orbital-diagram.png)
Why group and block follow from this is set out in how the periodic table maps electron configuration, and the electron configuration of every element is listed on one page. To write the configuration of an ion of niobium, use the electron configuration calculator.
Electron configurations of niobium ions
The table gives the niobium atom and the ion for each common oxidation state listed above, in its ground state as a free ion in the gas phase.
| Atom or ion | Electrons | Configuration | Unpaired electrons |
|---|---|---|---|
| Nb (neutral atom) | 41 | [Kr] 4d4 5s1 | 5 |
| Nb³⁺ | 38 | [Kr] 4d2 | 2 |
| Nb⁵⁺ | 36 | [Ar] 3d10 4s2 4p6 | 0 |
Every positive ion matches its ground state in the NIST Atomic Spectra Database. Unpaired electrons are counted by Hund’s rule.
Nb⁵⁺ has the same electron configuration as a krypton atom.
Niobium: isotopes, discovery and uses
| Isotope | Atomic mass (Da) | Share of atoms (amount fraction) | Half-life |
|---|---|---|---|
| Niobium-93 | 92.906 37(1) | 1 | stable |
Atomic masses and shares of atoms: IUPAC CIAAW. Half-lives: NUBASE2020 (Kondev et al., Chin. Phys. C 45, 030001 (2021)).
Standard atomic weight 92.90637(1), the CIAAW value since 2017 (CIAAW).
- Discovered
- Charles Hatchett, 1801, in columbite (CIAAW)
- Name
- From the Greek mythological character Niobe, who was the daughter of Tantalus, because the elements niobium and tantalum were originally thought to be identical (CIAAW)
- Isotopes in use
- Biology: 95Nb (with a half-life of 35 days) and 95Nb-oxalates have been used to study the absorption, retention and distribution of niobium in the body (IUPAC Periodic Table of the Elements and Isotopes via PubChem)
- Estimated crustal abundance
- 20 mg/kg (Jefferson Lab via PubChem)
Read at the sources on 26 October 2026. “via PubChem” marks text PubChem republishes from the publisher named.
Mass of one niobium atom
A molar mass is grams per mole, so dividing by the Avogadro constant gives the mass of one niobium-93 atom, the only isotope in NIST’s composition of natural niobium, and the reciprocal gives how many atoms sit in a gram.
Mass of one atom
- one atom = 92.906 / (6.02214076 × 10²³)
- = 1.5427 × 10⁻²² g
Atoms in one gram
- atoms per gram = 6.02214076 × 10²³ / 92.906
- = 6.4820 × 10²¹ atoms
Niobium on the periodic table
Niobium is in period 5, group 5, in the d-block.
The other elements of group 5 are vanadium, tantalum and dubnium.
In group 5, niobium has the highest electron affinity. The comparison leaves out dubnium, of which only a few atoms have ever been made.
The rest of period 5
- 37 Rb Rubidium
- 38 Sr Strontium
- 39 Y Yttrium
- 40 Zr Zirconium
- 41 Nb Niobium
- 42 Mo Molybdenum
- 43 Tc Technetium
- 44 Ru Ruthenium
- 45 Rh Rhodium
- 46 Pd Palladium
- 47 Ag Silver
- 48 Cd Cadmium
- 49 In Indium
- 50 Sn Tin
- 51 Sb Antimony
- 52 Te Tellurium
- 53 I Iodine
- 54 Xe Xenon
