Calcium

Atomic number
20
Atomic mass
40.078
Configuration
[Ar] 4s2
Group
2

Calcium (Ca) is an alkaline earth metal with atomic number 20 and an atomic mass of 40.078. Its electron configuration is [Ar] 4s2, which gives it 2 valence electrons.

Interactive periodic tableOrbital shapesMolar mass calculator

Calcium key data

Identity
Symbol Ca
Atomic number 20
Atomic mass (standard atomic weight) 40.078
Molar mass 40.078 g/mol
Particles
Protons 20
Neutrons (most abundant isotope, calcium-40) 20
Abundance of calcium-40 96.941%
Electrons (neutral atom) 20
Valence electrons 2
Placement
Category Alkaline earth metal
Period 4
Group 2
Block s-block
Electron configuration
Noble gas notation [Ar] 4s2
Full electron configuration 1s2 2s2 2p6 3s2 3p6 4s2
Electrons per shell 2, 8, 8, 2

Atomic mass: IUPAC CIAAW abridged standard atomic weights, 2024. Most abundant isotope: NIST Atomic Weights and Isotopic Compositions.

The values are facts and free to use; this page’s selection and presentation are © 2026 ScienceQuest.

Updated

Measured properties of calcium

From PubChem, the US National Institutes of Health. Public domain. PubChem’s periodic table gives no value for the rows not shown. The discovery year is the year calcium was first isolated, from Wikipedia’s timeline of chemical element discoveries, in place of PubChem’s “Ancient”.

Melting point 1115 K (841.85 °C), 55th of 103 by melting point
Boiling point 1757 K (1483.9 °C), 61st of 93 by boiling point
Density 1.54 g/cm³, 81st of 96 by density
State at room temperature Solid
Electronegativity 1 (Pauling), 86th of 95 by electronegativity
Van der Waals radius 231 pm, 26th of 99 by atomic radius
First ionisation energy 6.113 eV (589.8 kJ/mol), 72nd of 102 by first ionisation energy
Common oxidation states +2
Discovered 1808

Each rank counts down from the highest value, among the elements PubChem’s table gives one for, and links to that property ranked across the whole table. All of them are collected under periodic trends.

Calcium electron configuration

The full electron configuration of calcium is 1s2 2s2 2p6 3s2 3p6 4s2. With the noble-gas core collapsed it is [Ar] 4s2, and the outermost subshell is 4s2.

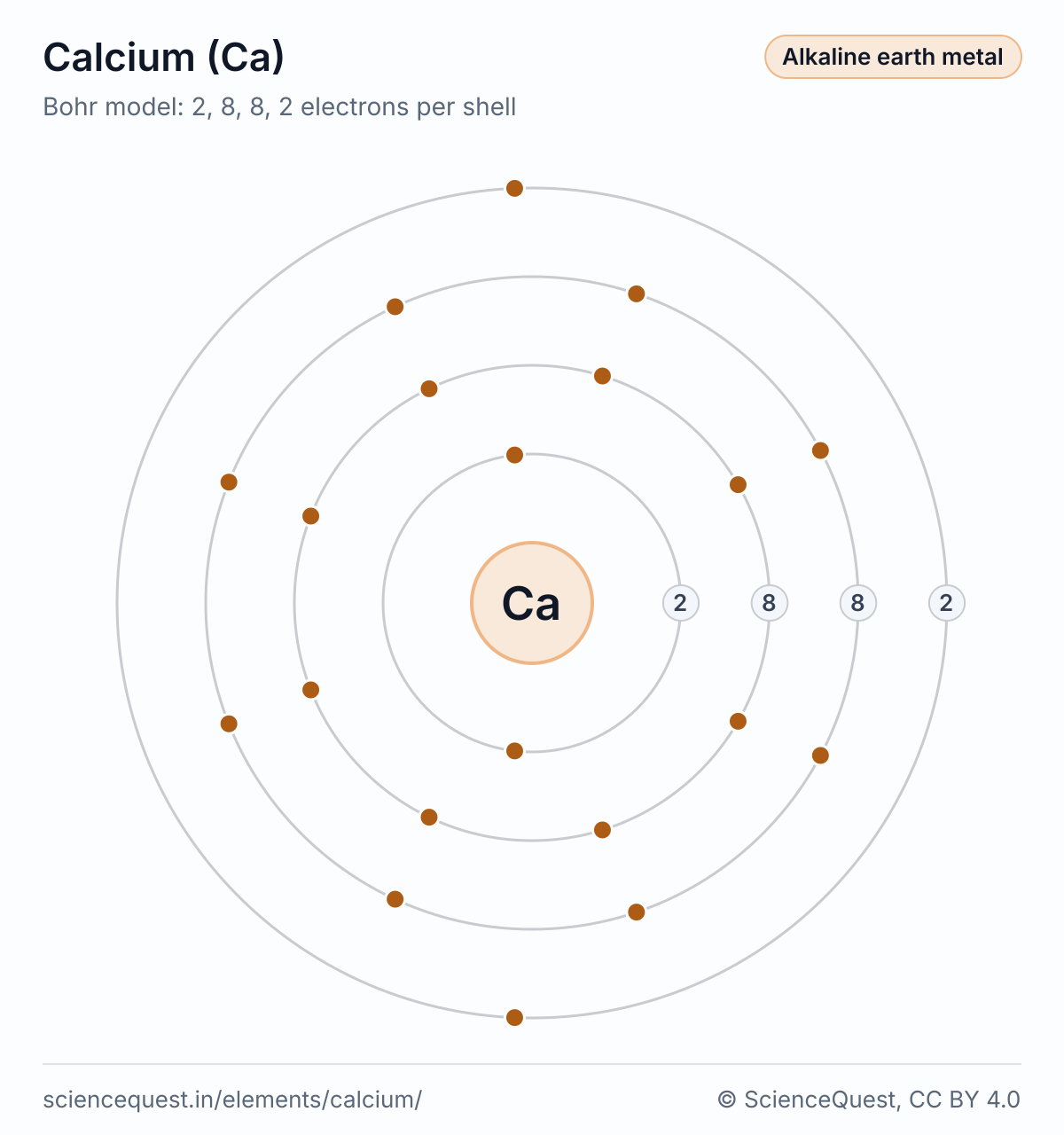

Bohr model of calcium (Ca): a nucleus and four shells holding 2, 8, 8 and 2 electrons from the inside out.Bohr model of calcium (Ca): a nucleus and four shells holding 2, 8, 8 and 2 electrons from the inside out.
Bohr model of calcium (Ca). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

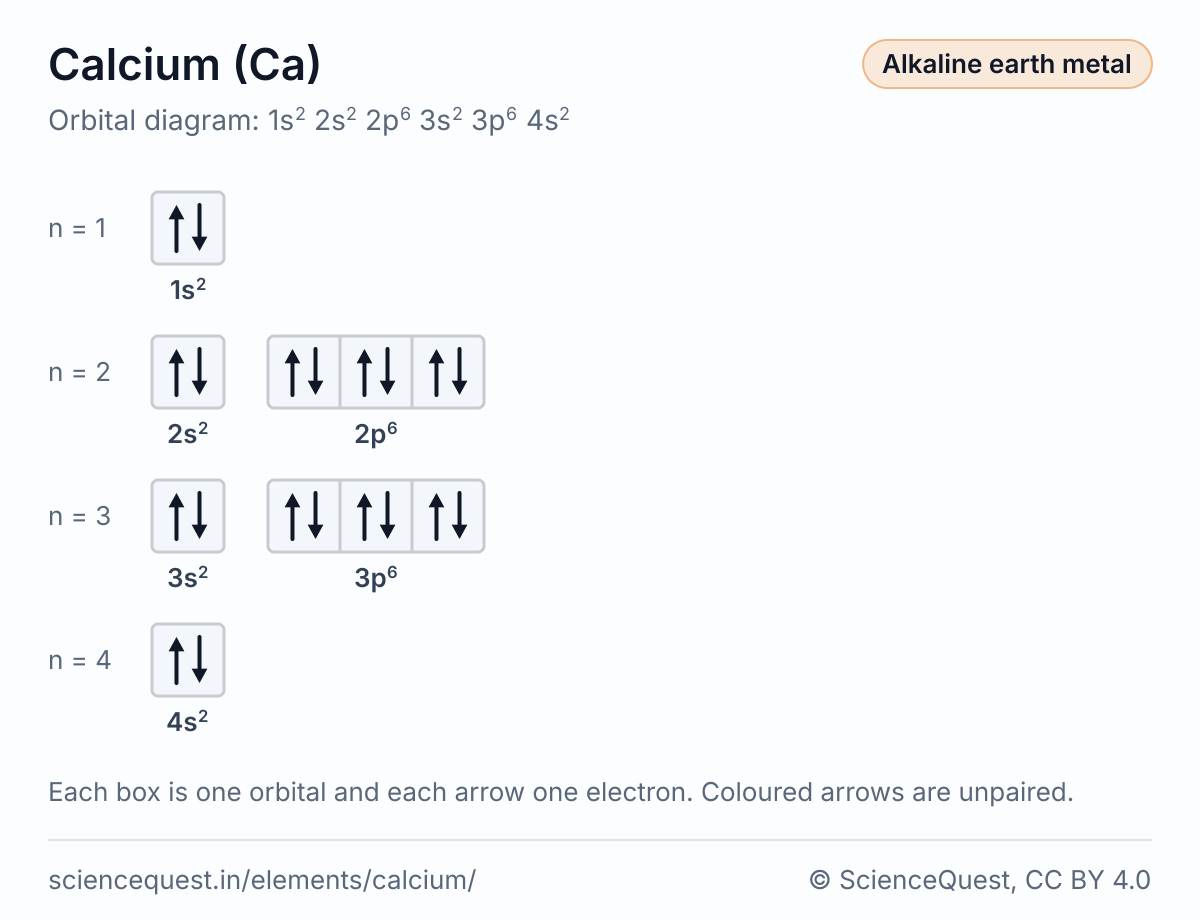

Orbital box diagram of calcium (Ca), 1s2 2s2 2p6 3s2 3p6 4s2: one box per orbital, filled by Hund’s rule, showing every orbital drawn holds a pair of electrons.Orbital box diagram of calcium (Ca), 1s2 2s2 2p6 3s2 3p6 4s2: one box per orbital, filled by Hund’s rule, showing every orbital drawn holds a pair of electrons.
Orbital diagram of calcium (Ca). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

Why group and block follow from this is set out in how the periodic table maps electron configuration, and the electron configuration of every element is listed on one page. To write the configuration of an ion of calcium, use the electron configuration calculator.

Electron configurations of calcium ions

The table gives the calcium atom and the ion for the common oxidation state listed above, in its ground state as a free ion in the gas phase.

Atom or ion Electrons Configuration Unpaired electrons
Ca (neutral atom) 20 [Ar] 4s2 0
Ca²⁺ 18 [Ne] 3s2 3p6 0

The positive ion matches its ground state in the NIST Atomic Spectra Database. Unpaired electrons are counted by Hund’s rule.

Ca²⁺ has the same electron configuration as an argon atom.

Standard reduction potential of calcium

The table gives the only half-reaction in the standard reduction potentials table with calcium as the element on one side or as a monatomic ion on both, and its E° at 25 °C against the standard hydrogen electrode.

Half-reaction E°, volts
Ca²⁺ + 2e⁻ → Ca −2.87

Calcium: isotopes, discovery and uses

Natural isotopes of calcium
Isotope Atomic mass (Da) Share of atoms (amount fraction) Half-life
Calcium-40 39.962 5909(2) 0.96941(156) stable
Calcium-42 41.958 618(1) 0.00647(23) stable
Calcium-43 42.958 766(2) 0.00135(10) stable
Calcium-44 43.955 482(2) 0.02086(110) stable
Calcium-46 45.953 69(2) 0.00004(3) stable
Calcium-48 47.952 5229(6) 0.00187(21) 56 × 10¹⁸ years

Atomic masses and shares of atoms: IUPAC CIAAW. Half-lives: NUBASE2020 (Kondev et al., Chin. Phys. C 45, 030001 (2021)).

Standard atomic weight 40.078(4), the CIAAW value since 1983 (CIAAW).

First isolated
Humphry Davy, 1808 (CIAAW)
Name
From the Latin calx for “lime” (CaO) or “limestone” (CaCO₃) in which it was found (CIAAW)
Uses
Calcium: used in vacuum tubes as a getter, a material that combines with and removes trace gases from vacuum tubes (Jefferson Lab via PubChem)
Isotopes in use
Planetary science: The isotope-amount ratio n(44Ca)/n(40Ca) is used to quantify the calcium cycle (sources and sinks of calcium) in the ocean (IUPAC Periodic Table of the Elements and Isotopes via PubChem)
Estimated crustal abundance
41,500 mg/kg (Jefferson Lab via PubChem)

Read at the sources on 26 October 2026. “via PubChem” marks text PubChem republishes from the publisher named.

Mass of one calcium atom

A molar mass is grams per mole, so dividing by the Avogadro constant gives the average mass of calcium’s atoms across its natural isotopes, and the reciprocal gives how many atoms sit in a gram.

Mass of one atom

  1. one atom = 40.078 / (6.02214076 × 10²³)
  2. = 6.6551 × 10⁻²³ g

Atoms in one gram

  1. atoms per gram = 6.02214076 × 10²³ / 40.078
  2. = 1.5026 × 10²² atoms

Calcium on the periodic table

Calcium is in period 4, group 2, in the s-block.

The other elements of group 2 are beryllium, magnesium, strontium, barium and radium.

Against the usual trend down a group, calcium has a lower density (1.54 against 1.74 g/cm³) than magnesium above it.
