ScienceQuest

Erbium

Atomic number
68
Atomic mass
167.26
Configuration
[Xe] 4f12 6s2
Category
Lanthanide

Erbium (Er) is a lanthanide with atomic number 68 and an atomic mass of 167.26. Its electron configuration is [Xe] 4f12 6s2.

Interactive periodic tableOrbital shapesMolar mass calculator

Erbium key data

Identity
Symbol Er
Atomic number 68
Atomic mass (standard atomic weight) 167.26
Molar mass 167.26 g/mol
Particles
Protons 68
Neutrons (most abundant isotope, erbium-166) 98
Abundance of erbium-166 33.503%
Electrons (neutral atom) 68
Placement
Category Lanthanide
Period 6
Group f-block, no group
Block f-block
Electron configuration
Noble gas notation [Xe] 4f12 6s2
Full electron configuration 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f12 5s2 5p6 6s2
Electrons per shell 2, 8, 18, 30, 8, 2

Atomic mass: IUPAC CIAAW abridged standard atomic weights, 2024. Most abundant isotope: NIST Atomic Weights and Isotopic Compositions.

The values are facts and free to use; this page’s selection and presentation are © 2026 ScienceQuest.

Updated

Measured properties of erbium

From PubChem, the US National Institutes of Health. Public domain. PubChem’s periodic table gives no value for the rows not shown.

Melting point 1802 K (1528.9 °C), 27th of 103 by melting point
Boiling point 3141 K (2867.9 °C), 37th of 93 by boiling point
Density 9.07 g/cm³, 31st of 96 by density
State at room temperature Solid
Electronegativity 1.24 (Pauling), 75th of 95 by electronegativity
Van der Waals radius 235 pm, joint 23rd of 99 by atomic radius
First ionisation energy 6.108 eV (589.3 kJ/mol), joint 73rd of 102 by first ionisation energy
Common oxidation states +3
Discovered 1843

Each rank counts down from the highest value, among the elements PubChem’s table gives one for, and links to that property ranked across the whole table. All of them are collected under periodic trends.

Erbium electron configuration

The full electron configuration of erbium is 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f12 5s2 5p6 6s2. With the noble-gas core collapsed it is [Xe] 4f12 6s2, and the outermost subshell is 6s2.

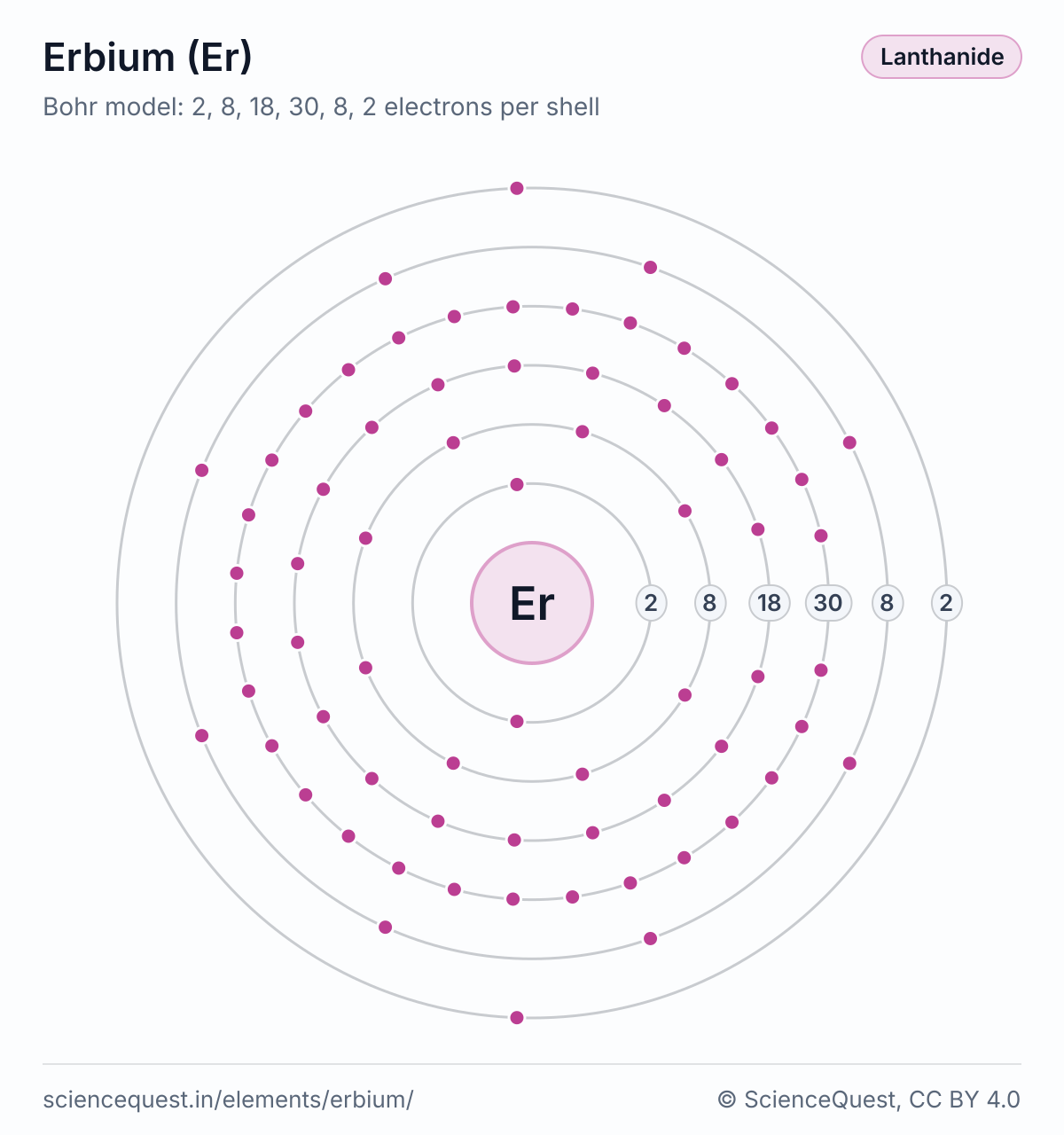

Bohr model of erbium (Er): a nucleus and six shells holding 2, 8, 18, 30, 8 and 2 electrons from the inside out.Bohr model of erbium (Er): a nucleus and six shells holding 2, 8, 18, 30, 8 and 2 electrons from the inside out.
Bohr model of erbium (Er). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

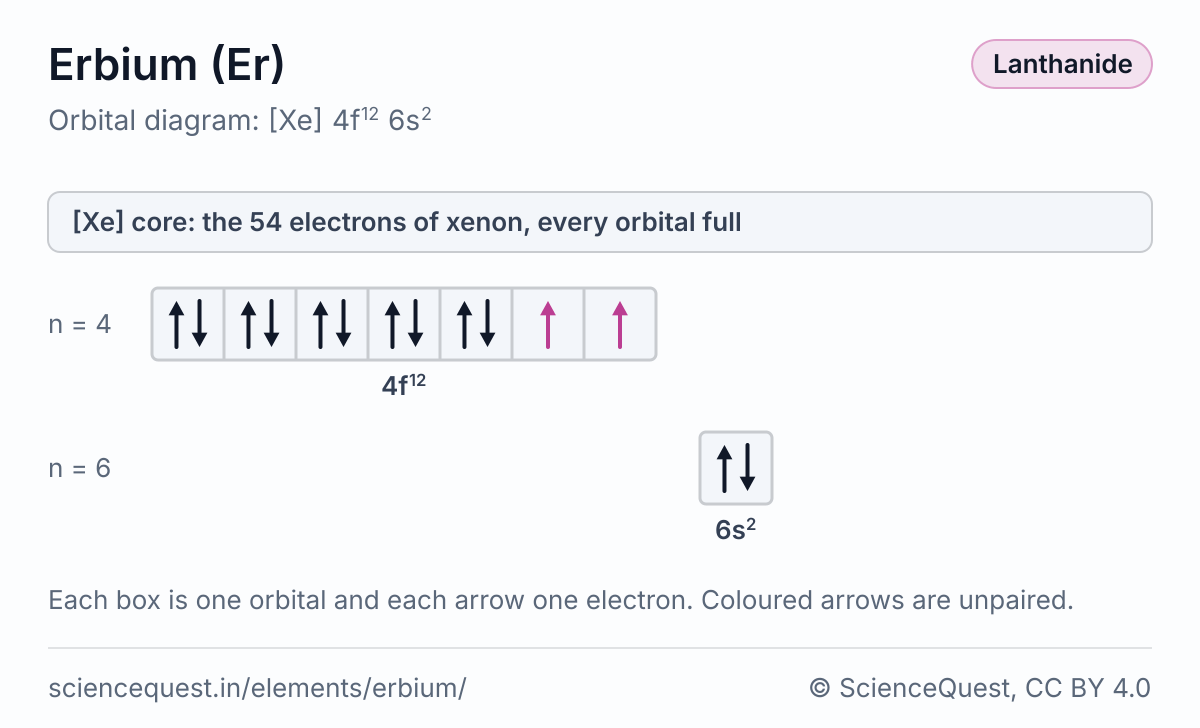

Orbital box diagram of erbium (Er), [Xe] 4f12 6s2, with the xenon core drawn as one bar: one box per orbital, filled by Hund’s rule, showing two unpaired electrons, in 4f.Orbital box diagram of erbium (Er), [Xe] 4f12 6s2, with the xenon core drawn as one bar: one box per orbital, filled by Hund’s rule, showing two unpaired electrons, in 4f.
Orbital diagram of erbium (Er). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

Why group and block follow from this is set out in how the periodic table maps electron configuration, and the electron configuration of every element is listed on one page. To write the configuration of an ion of erbium, use the electron configuration calculator.

Electron configurations of erbium ions

The table gives the erbium atom and the ion for the common oxidation state listed above, in its ground state as a free ion in the gas phase.

Atom or ion Electrons Configuration Unpaired electrons
Er (neutral atom) 68 [Xe] 4f12 6s2 2
Er³⁺ 65 [Xe] 4f11 3

The positive ion matches its ground state in the NIST Atomic Spectra Database. Unpaired electrons are counted by Hund’s rule.

Erbium: isotopes, discovery and uses

Natural isotopes of erbium
Isotope Atomic mass (Da) Share of atoms (amount fraction) Half-life
Erbium-162 161.928 787(6) 0.00139(5) stable
Erbium-164 163.929 207(5) 0.01601(3) stable
Erbium-166 165.930 299(8) 0.33503(36) stable
Erbium-167 166.932 054(8) 0.22869(9) stable
Erbium-168 167.932 376(8) 0.26978(18) stable
Erbium-170 169.935 47(1) 0.14910(36) stable

Atomic masses and shares of atoms: IUPAC CIAAW. Half-lives: NUBASE2020 (Kondev et al., Chin. Phys. C 45, 030001 (2021)).

Standard atomic weight 167.259(3), the CIAAW value since 1999 (CIAAW).

Discovered
Carl-Gustav Mosander, 1843, in a yttrium sample (CIAAW)
Name
From the Swedish town of Ytterby, where the ore gadolinite (in which it was found) was first mined (CIAAW)
Isotopes in use
Medicine: 169Er (with a half-life of 9.4 days) is used in radiosynovectomy, which is a regularly practiced radiotherapy, on rheumatoid arthritis patients whose condition is resistant to standard methods of treatment (IUPAC Periodic Table of the Elements and Isotopes via PubChem)
Estimated crustal abundance
3.5 mg/kg (Jefferson Lab via PubChem)

Read at the sources on 26 October 2026. “via PubChem” marks text PubChem republishes from the publisher named.

Mass of one erbium atom

A molar mass is grams per mole, so dividing by the Avogadro constant gives the average mass of erbium’s atoms across its natural isotopes, and the reciprocal gives how many atoms sit in a gram.

Mass of one atom

  1. one atom = 167.26 / (6.02214076 × 10²³)
  2. = 2.7774 × 10⁻²² g

Atoms in one gram

  1. atoms per gram = 6.02214076 × 10²³ / 167.26
  2. = 3.6005 × 10²¹ atoms

Erbium on the periodic table

Erbium is in period 6, outside the numbered groups, in the f-block.

The rest of period 6

Work with erbium
