Re

Rhenium

Rhenium (Re) is a transition metal with atomic number 75 and an atomic mass of 186.21. Its electron configuration is [Xe] 4f14 5d5 6s2.

Rhenium key data

Symbol Re
Atomic number 75
Atomic mass (standard atomic weight) 186.21
Molar mass 186.21 g/mol
Protons 75
Neutrons (most abundant isotope, rhenium-187) 112
Electrons (neutral atom) 75
Category Transition metal
Period 6
Group 7
Block d-block
Noble gas notation [Xe] 4f14 5d5 6s2
Full electron configuration 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f14 5s2 5p6 5d5 6s2
Electrons per shell 2, 8, 18, 32, 13, 2

Atomic mass: IUPAC CIAAW abridged standard atomic weights, 2024. Most abundant isotope: NIST Atomic Weights and Isotopic Compositions.

The values are facts and free to use; this page’s selection and presentation are © 2026 ScienceQuest.

Measured properties of rhenium

From PubChem, the US National Institutes of Health. Public domain. The first ionisation energy is the value for rhenium from the NIST Atomic Spectra Database, in place of PubChem’s 7.88 eV.

Melting point 3459 K (3185.9 °C), 3rd of 103 by melting point
Boiling point 5869 K (5595.9 °C), 1st of 93 by boiling point
Density 20.8 g/cm³, 4th of 96 by density
State at room temperature Solid
Electronegativity 1.9 (Pauling), joint 36th of 95 by electronegativity
Van der Waals radius 217 pm, joint 37th of 99 by atomic radius
First ionisation energy 7.8335 eV (755.82 kJ/mol), 38th of 102 by first ionisation energy
Electron affinity 0.15 eV (14.5 kJ/mol), 56th of 57 by electron affinity
Common oxidation states +7, +6, +4
Discovered 1925

Each rank counts down from the highest value, among the elements PubChem’s table gives one for, and links to that property ranked across the whole table. All of them are collected under periodic trends.

Rhenium electron configuration

The full electron configuration of rhenium is 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f14 5s2 5p6 5d5 6s2. With the noble-gas core collapsed it is [Xe] 4f14 5d5 6s2, and the outermost subshell is 6s2.

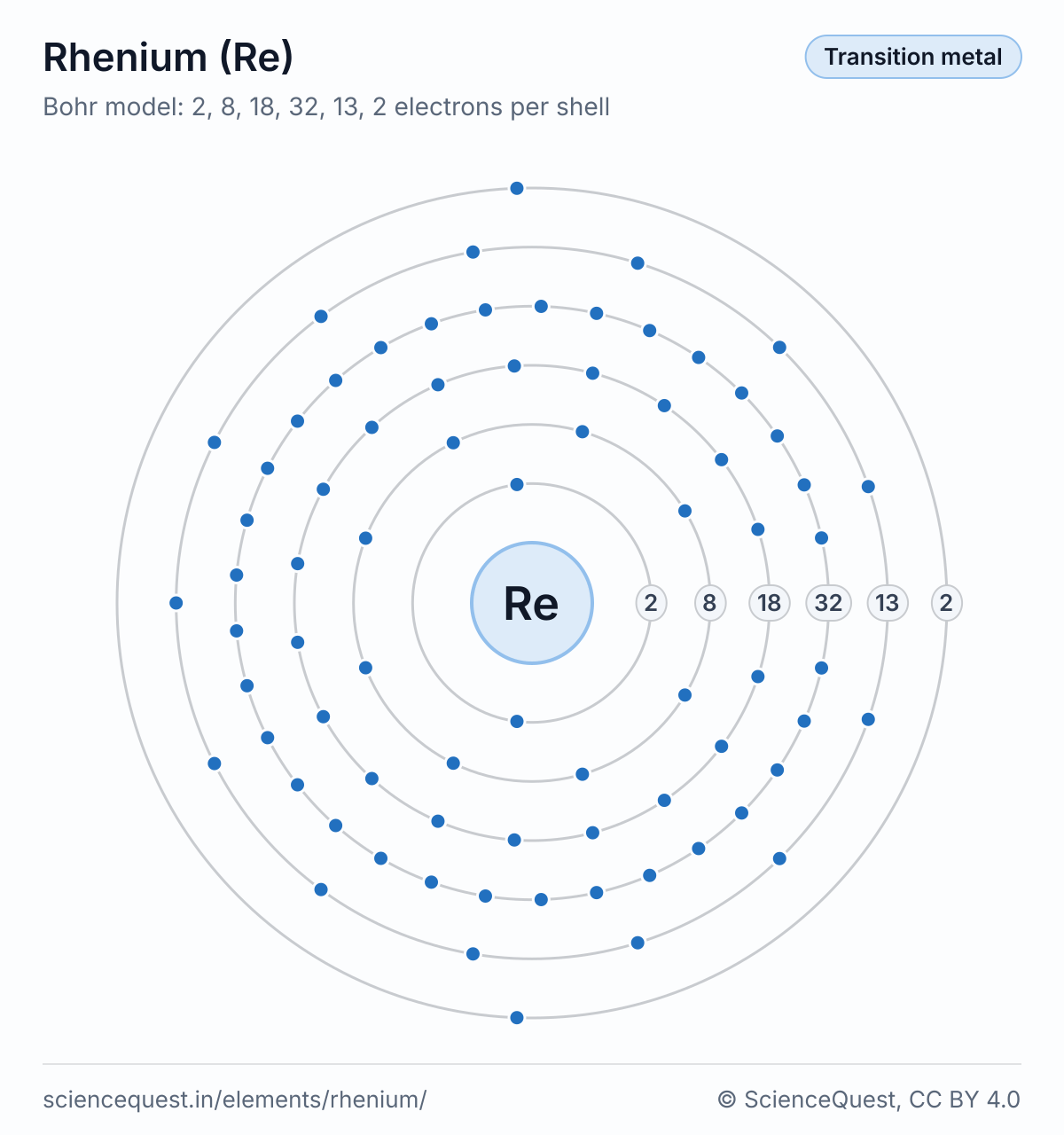

Bohr model of rhenium (Re): a nucleus and six shells holding 2, 8, 18, 32, 13 and 2 electrons from the inside out.
Bohr model of rhenium (Re). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

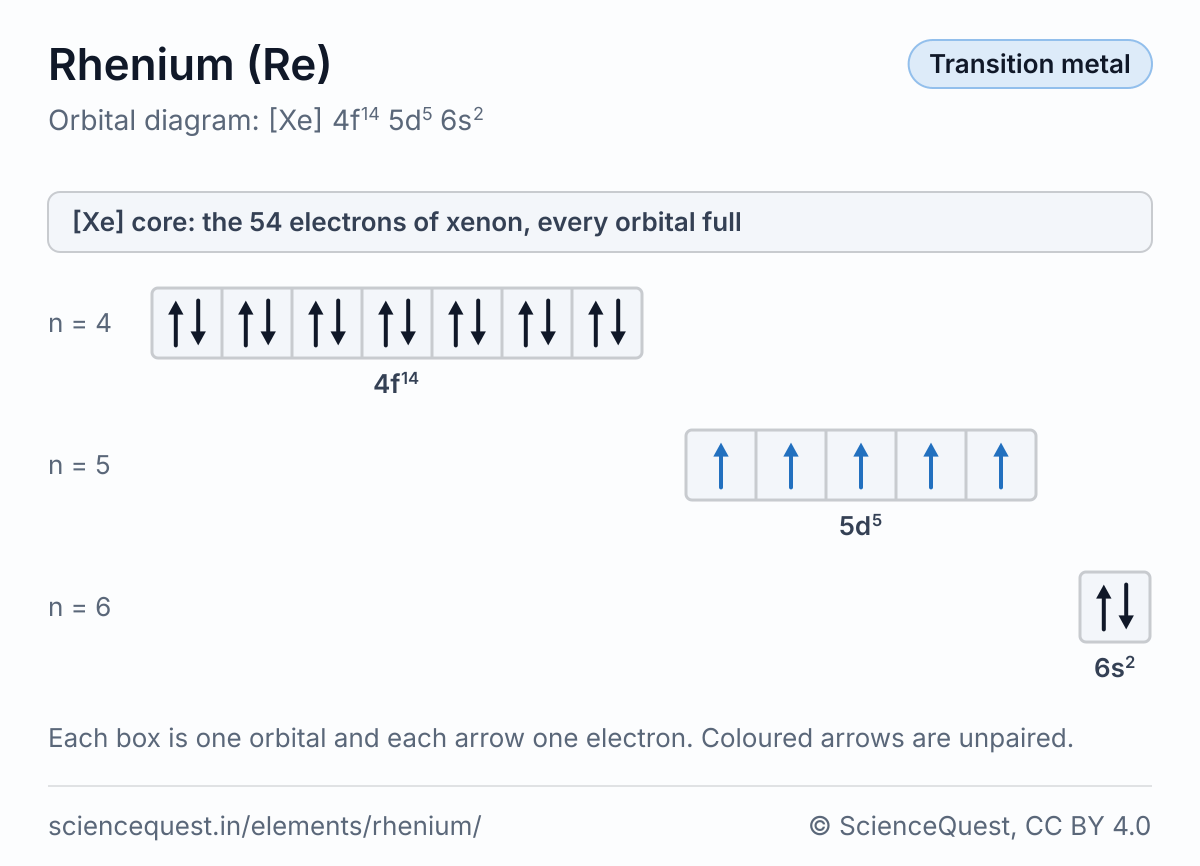

Orbital box diagram of rhenium (Re), [Xe] 4f14 5d5 6s2, with the xenon core drawn as one bar: one box per orbital, filled by Hund’s rule, showing five unpaired electrons, in 5d.
Orbital diagram of rhenium (Re). Image © ScienceQuest, CC BY 4.0: free to reuse with credit to ScienceQuest and a link to this page, as the image licence explains.

Why group and block follow from this is set out in how the periodic table maps electron configuration, and the electron configuration of every element is listed on one page.

Mass of one rhenium atom

A molar mass is grams per mole, so dividing by the Avogadro constant gives the mass of a single atom, or for an element with more than one natural isotope the average mass of its atoms, and the reciprocal gives how many atoms sit in a gram.

Mass of one atom

  1. one atom = 186.21 / (6.02214076 × 10²³)
  2. = 3.0921 × 10⁻²² g

Atoms in one gram

  1. atoms per gram = 6.02214076 × 10²³ / 186.21
  2. = 3.2341 × 10²¹ atoms

Rhenium on the periodic table

Rhenium is in period 6, group 7, in the d-block.

The other elements of group 7 are manganese, technetium and bohrium.
