Uranium
- Atomic number
- 92
- Atomic mass
- 238.03
- Configuration
- [Rn] 5f3 6d1 7s2
- Category
- Actinide
- Group
- f-block, no group
Uranium (U) is an actinide with atomic number 92 and an atomic mass of 238.03. Its electron configuration is [Rn] 5f3 6d1 7s2.
Interactive periodic tableOrbital shapesMolar mass calculator
Uranium key data
| Symbol | U |
|---|---|
| Atomic number | 92 |
| Atomic mass (standard atomic weight) | 238.03 |
| Molar mass | 238.03 g/mol |
| Protons | 92 |
|---|---|
| Neutrons (most abundant isotope, uranium-238) | 146 |
| Abundance of uranium-238 | 99.2742% |
| Electrons (neutral atom) | 92 |
| Category | Actinide |
|---|---|
| Period | 7 |
| Group | f-block, no group |
| Block | f-block |
| Noble gas notation | [Rn] 5f3 6d1 7s2 |
|---|---|
| Full electron configuration | 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f14 5s2 5p6 5d10 5f3 6s2 6p6 6d1 7s2 |

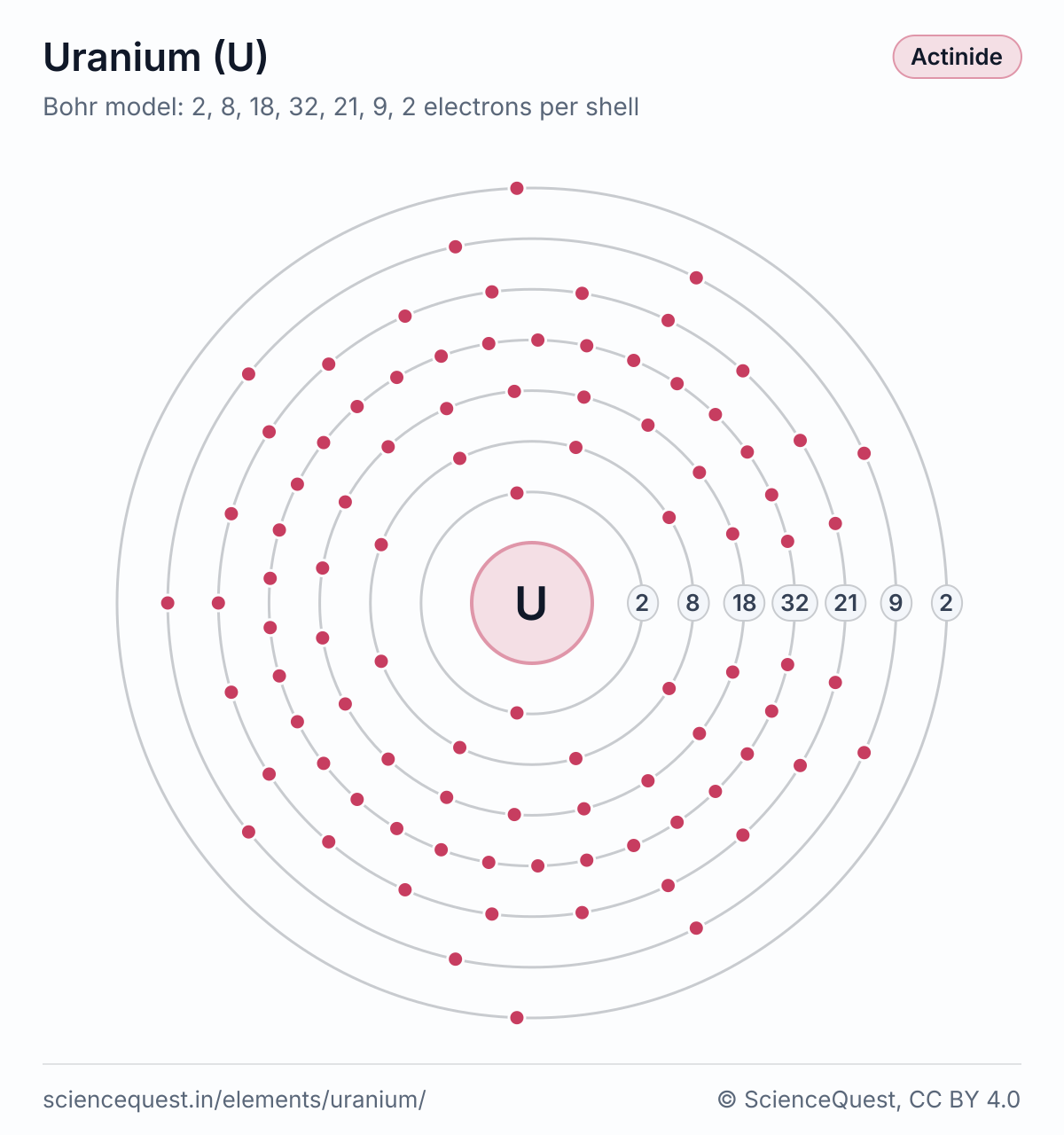

| Electrons per shell | 2, 8, 18, 32, 21, 9, 2 |
Atomic mass: IUPAC CIAAW abridged standard atomic weights, 2024. Most abundant isotope: NIST Atomic Weights and Isotopic Compositions.
The values are facts and free to use; this page’s selection and presentation are © 2026 ScienceQuest.
Updated
Measured properties of uranium
From PubChem, the US National Institutes of Health. Public domain. PubChem’s periodic table gives no value for the rows not shown.
| Melting point | 1408 K (1134.9 °C), 41st of 103 by melting point |
|---|---|
| Boiling point | 4404 K (4130.9 °C), 13th of 93 by boiling point |
| Density | 18.95 g/cm³, 9th of 96 by density |
| State at room temperature | Solid |
| Electronegativity | 1.38 (Pauling), 56th of 95 by electronegativity |
| Van der Waals radius | 240 pm, joint 17th of 99 by atomic radius |
| First ionisation energy | 6.194 eV (597.6 kJ/mol), 69th of 102 by first ionisation energy |
| Common oxidation states | +6, +5, +4, +3 |
| Discovered | 1789 |
Each rank counts down from the highest value, among the elements PubChem’s table gives one for, and links to that property ranked across the whole table. All of them are collected under periodic trends.
Uranium electron configuration
The full electron configuration of uranium is 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f14 5s2 5p6 5d10 5f3 6s2 6p6 6d1 7s2. With the noble-gas core collapsed it is [Rn] 5f3 6d1 7s2, and the outermost subshell is 7s2.
Uranium does not follow the simple filling order. Its measured configuration differs from the one the aufbau rule predicts, because at this point in the table the 5f and 6d subshells lie so close in energy that one electron goes into 6d rather than 5f. This is a measured fact about the atom rather than an exception to be derived.

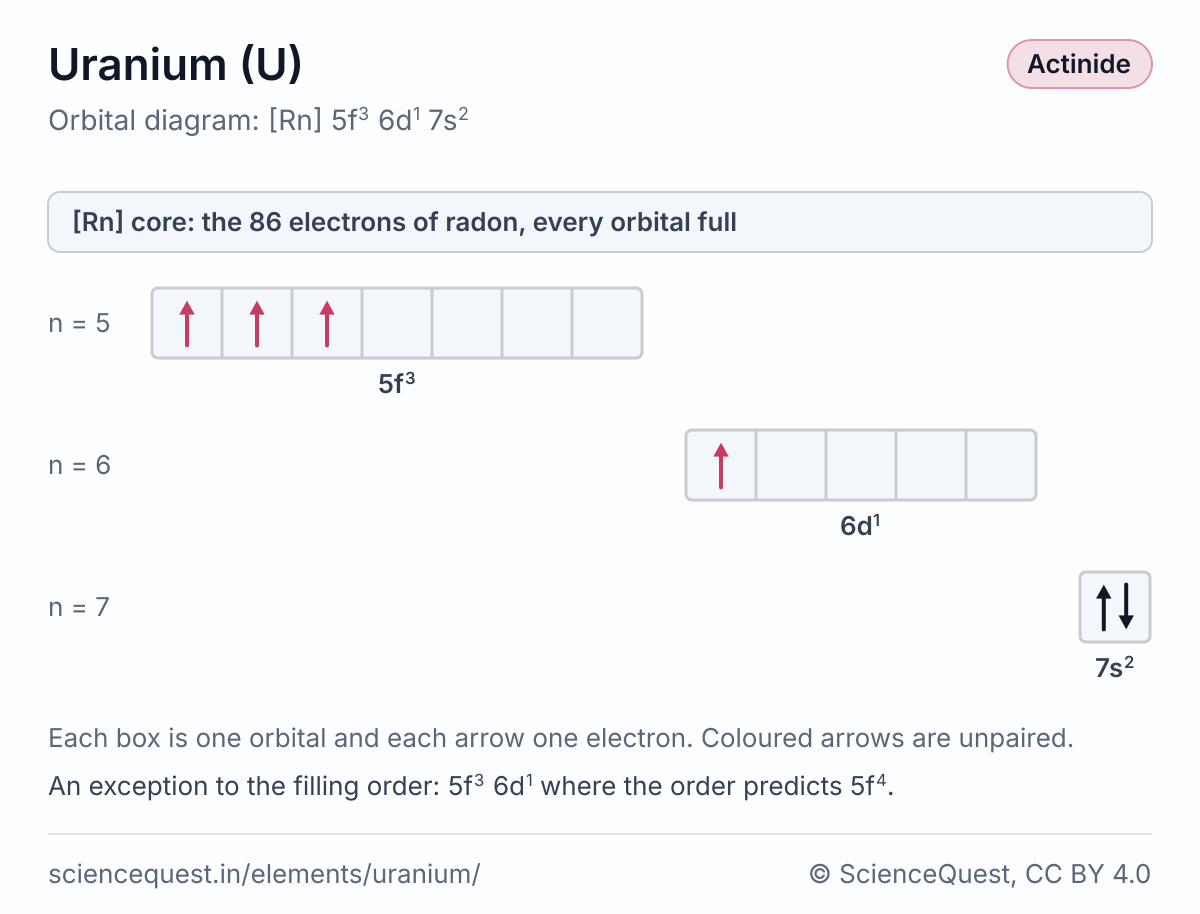

![Orbital box diagram of uranium (U), [Rn] 5f3 6d1 7s2, with the radon core drawn as one bar: one box per orbital, filled by Hund’s rule, showing four unpaired electrons, in 5f and 6d.](/images/elements/uranium-orbital-diagram.png)
Why group and block follow from this is set out in how the periodic table maps electron configuration, and the electron configuration of every element is listed on one page. To write the configuration of an ion of uranium, use the electron configuration calculator.
Electron configurations of uranium ions
The table gives the uranium atom and the ion for each common oxidation state listed above, in its ground state as a free ion in the gas phase.
| Atom or ion | Electrons | Configuration | Unpaired electrons |
|---|---|---|---|
| U (neutral atom) | 92 | [Rn] 5f3 6d1 7s2 | 4 |
| U³⁺ | 89 | [Rn] 5f3 | 3 |
| U⁴⁺ | 88 | [Rn] 5f2 | 2 |
| U⁵⁺ | 87 | [Rn] 5f1 | 1 |
| U⁶⁺ | 86 | [Xe] 4f14 5d10 6s2 6p6 | 0 |
Every positive ion matches its ground state in the NIST Atomic Spectra Database. Unpaired electrons are counted by Hund’s rule.
U⁶⁺ has the same electron configuration as a radon atom.
Uranium: isotopes, discovery and uses
| Isotope | Atomic mass (Da) | Share of atoms (amount fraction) | Half-life |
|---|---|---|---|
| Uranium-234 | 234.040 950(8) | 0.000054(5) | 245.5 thousand years |
| Uranium-235 | 235.043 928(8) | 0.007204(6) | 704 million years |
| Uranium-238 | 238.050 79(1) | 0.992742(10) | 4.463 billion years |
Atomic masses and shares of atoms: IUPAC CIAAW. Half-lives: NUBASE2020 (Kondev et al., Chin. Phys. C 45, 030001 (2021)).
Standard atomic weight 238.02891(3), the CIAAW value since 1999 (CIAAW).
- Discovered
- Martin-Heinrich Klaproth, 1789 (CIAAW)
- First isolated
- Eugène-Melchior Peligot, 1841, metal (CIAAW)
- Name
- From the planet Uranus, which in Roman mythology was “Father Heaven” (CIAAW)
- Isotopes in use
- Geochronology: The three natural radioactive decay chains beginning with 238U, 235U, and 232Th each have comparable half-lives that are much longer than the radioactive isotopes that follow until the production of stable isotopes of 206Pb, 207Pb, and 208Pb, respectively (IUPAC Periodic Table of the Elements and Isotopes via PubChem)
- Estimated crustal abundance
- 2.7 mg/kg (Jefferson Lab via PubChem)
Read at the sources on 26 October 2026. “via PubChem” marks text PubChem republishes from the publisher named.
Mass of one uranium atom
A molar mass is grams per mole, so dividing by the Avogadro constant gives the average mass of uranium’s atoms across its natural isotopes, and the reciprocal gives how many atoms sit in a gram.
Mass of one atom
- one atom = 238.03 / (6.02214076 × 10²³)
- = 3.9526 × 10⁻²² g
Atoms in one gram
- atoms per gram = 6.02214076 × 10²³ / 238.03
- = 2.5300 × 10²¹ atoms
Uranium on the periodic table
Uranium is in period 7, outside the numbered groups, in the f-block.
The rest of period 7
- 87 Fr Francium
- 88 Ra Radium
- 89 Ac Actinium
- 90 Th Thorium
- 91 Pa Protactinium
- 92 U Uranium
- 93 Np Neptunium
- 94 Pu Plutonium
- 95 Am Americium
- 96 Cm Curium
- 97 Bk Berkelium
- 98 Cf Californium
- 99 Es Einsteinium
- 100 Fm Fermium
- 101 Md Mendelevium
- 102 No Nobelium
- 103 Lr Lawrencium
- 104 Rf Rutherfordium
- 105 Db Dubnium
- 106 Sg Seaborgium
- 107 Bh Bohrium
- 108 Hs Hassium
- 109 Mt Meitnerium
- 110 Ds Darmstadtium
- 111 Rg Roentgenium
- 112 Cn Copernicium
- 113 Nh Nihonium
- 114 Fl Flerovium
- 115 Mc Moscovium
- 116 Lv Livermorium
- 117 Ts Tennessine
- 118 Og Oganesson
