Rib Cage and Thoracic Spine Explorer

BiologyVisualiserUndergraduate Updated

Support ScienceQuest on Buy Me a Coffee (opens in a new tab)

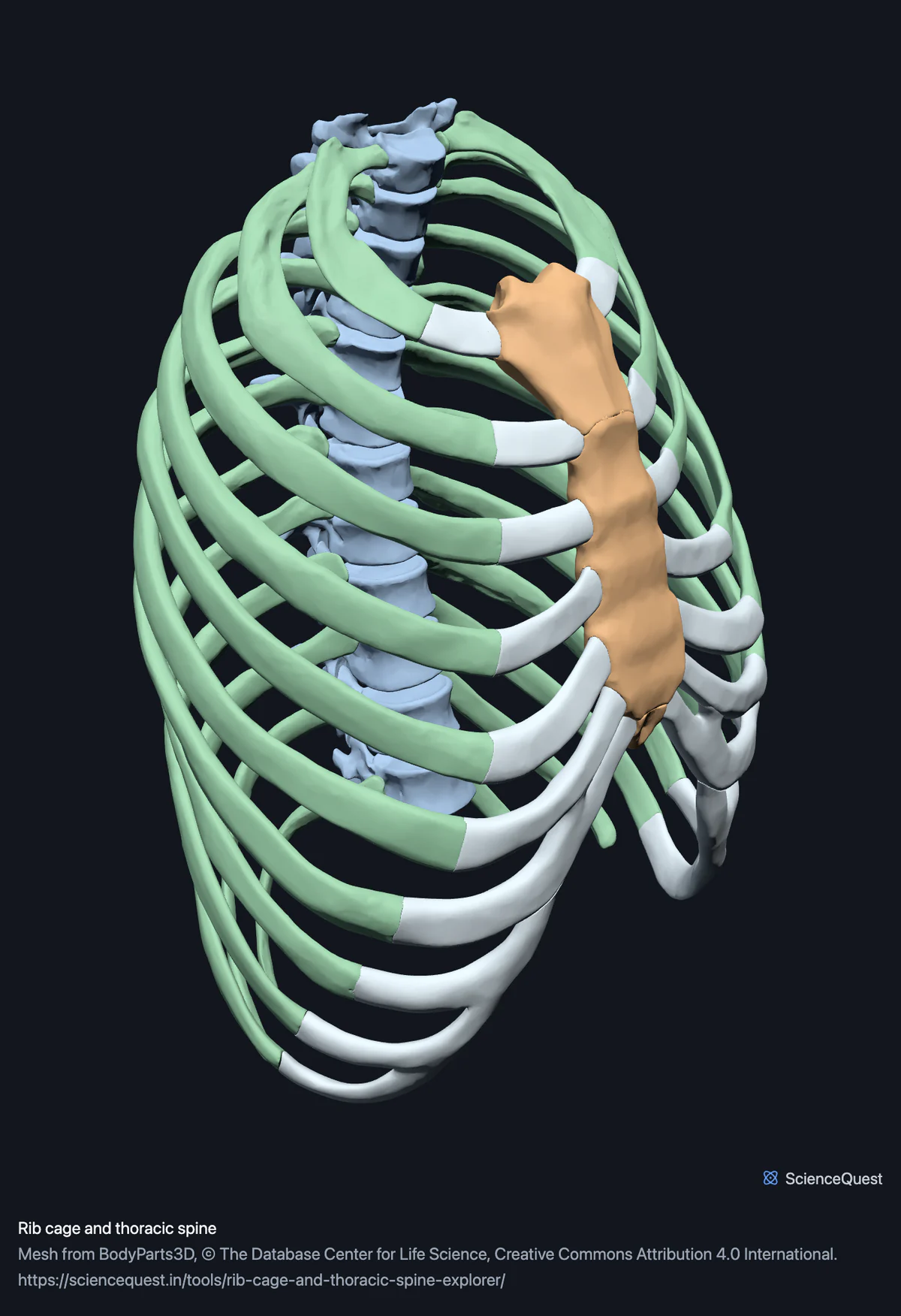

Turn the rib cage in 3D with all 24 ribs separable, the twelve thoracic vertebrae they hinge on, and the sternum in its three real pieces.

Visualiser

Rib cage and thoracic spine, 39 bones

3.6 MB, downloaded only when you press Start exploring and kept on this device afterwards.

Structures

Display

Start here

  1. Select the floating ribs The eleventh and twelfth stop short and reach nothing, which is what floating means.
  2. Hide the ribs Leaves the column and the sternum, so the facets each rib hinges on show along the vertebral bodies.
  3. Select the manubrium from the left Its joint with the body of the sternum sits level with the second rib, which is how ribs are counted on a patient.

Bone and costal cartilage. All sixteen costal cartilage meshes the dataset publishes are here, in their own pale band. They were left out at first and the cage looked broken rather than incomplete: every rib ended in mid air a long way from the sternum. No sternoclavicular joint, no intervertebral discs, no diaphragm and no lungs.

  • 39 bones
  • 12 thoracic vertebrae
  • 3 sternum
  • 24 ribs
  • 16 costal cartilage

The model also carries 16 of cartilage, so 55 parts load in total. They are listed and coloured like the rest, just not counted as bone.

39 bones, within 55 meshes. A thoracic cage is usually counted as 37: 24 ribs, 12 thoracic vertebrae and one sternum. The sternum is here as its three parts, manubrium, body and xiphoid process, which adds two. The remaining 16 meshes are costal cartilages and are not bone.

Where this comes from

Segmented from MRI of one adult male volunteer, then refined by medical illustrators, who filled in missing detail and sharpened blurred outlines from textbooks and atlases (Mitsuhashi et al., Nucleic Acids Research, 2009). Two consequences worth knowing: it is one person’s anatomy rather than an average, and faint stepping on some surfaces is the resolution of the original scan rather than a rendering fault.

Meshes from BodyParts3D, © The Database Center for Life Science, under Creative Commons Attribution 4.0 International. Names and identifiers are the dataset’s own: Foundational Model of Anatomy identifiers and English labels, as its parts list gives them. Converted meshes are shared under the same licence.

Changes made: Meshes were converted from binary STL to an indexed mesh with 16-bit quantised vertex positions, and surface normals were recomputed from the geometry. No vertex was moved other than by that quantisation, whose worst-case error on any one coordinate is reported on the page. On this page it is at most 0.00293 mm per axis. Each model’s file is then compressed without loss, by meshoptimizer’s vertex and index codecs and gzip, and restored exactly before it is drawn. The file holds 990,148 triangles in 3,618 kB, downloaded only when you press Start exploring.

Latin terms for 1 of the 55 structures come from English Wikipedia anatomy infoboxes, under Creative Commons Attribution-ShareAlike 4.0, joined by Wikidata property P1402, Foundational Model of Anatomy identifier. Only a term a source states for that structure is used, never one constructed from a family name, which is why the rest carry no Latin rather than a guess. A few are corrected to the Terminologia Anatomica form where Wikipedia gives an older one, and where several forms are listed, some may still be older synonyms rather than the Terminologia term.

All 55 structures

Every structure the model contains, group by group. Of these, 39 are bones of this region. Each name opens the viewer with that structure selected, so a link can point at one structure rather than at the whole region.

Pages on this model’s structures, with sources and renders: Sternum, Rib, Costal cartilage.

Sternum 3

Cite this tool

Citing this tool

Last updated . Add the date you accessed it as well, which a citation of a page that can change asks for. If a specific view matters, cite the page address as it stands in your browser instead: it records what is selected and shown.

What bones form the human rib cage and thoracic spine?

The thoracic cage comprises 12 pairs of ribs (7 true ribs articulating directly with the sternum via costal cartilages, 3 false ribs sharing cartilage, and 2 floating ribs with free ends), the 12 thoracic vertebrae (T1 to T12), and the anterior sternum (manubrium, sternal body, and xiphoid process).

True, false and floating

A grouping by what a rib reaches at the front, not by the bone itself:

True, ribs one to seven
Reach the sternum through their own costal cartilage.
False, ribs eight to ten
Join the cartilage of the rib above rather than the sternum directly.
Floating, ribs eleven and twelve
End in the abdominal wall and reach nothing at the front.

A sternum in three pieces

The manubrium, the body and the xiphoid process ossify separately, and the xiphoid usually fuses to the body by middle age, while the manubrium usually stays joined to the body by cartilage for life. The dataset keeps all three apart. Measured here, the manubrium sits about 140 mm above the xiphoid, so the sternum is longer than most diagrams imply.

Common questions

What are true, false and floating ribs?

A grouping by what the rib reaches at the front, not by the bone itself. The first seven pairs join the sternum through their own costal cartilage and are called true ribs. The eighth, ninth and tenth join the cartilage above them rather than the sternum directly, which makes them false ribs. The eleventh and twelfth end in the muscle of the abdominal wall and reach nothing at the front at all, which is why they are called floating. This model carries the bone, so the distinction shows up as which ribs curve round towards the sternum and which stop short: turn to the front view and follow the eleventh and twelfth forward to see them end.

Why does the sternum come apart into three pieces?

Because its three parts ossify separately, and the dataset segments them apart. The xiphoid usually fuses to the body by middle age, but the manubrium usually stays joined to the body by cartilage for life. The manubrium is the broad top piece that meets the clavicles, the body is the long middle, and the xiphoid process is the small tip, which is cartilage in youth and often does not fully ossify until middle age. Measured on this specimen the manubrium sits about 140 millimetres above the xiphoid, so the sternum is a good deal longer than most diagrams suggest. The joint between the manubrium and the body is a real landmark: it sits level with the second rib, which is how you count ribs on a patient.

Why are the ribs so much heavier to download than the skull?

Because of their shape. The 24 ribs are 755,704 triangles between them, averaging about 31,500 each, and that total is three times the whole skull. A rib is a long thin curved shell, and that is the worst case for a triangle budget: a surface that encloses almost no volume has nothing to amortise its own area against, where a compact bone like a vertebra gets a lot of shape for comparatively few triangles. That makes this the heaviest skeletal region on the site after the full skeleton, and the size is shown under the start button so you can decide before it downloads.

Are the costal cartilages included?

Yes, all sixteen costal cartilage meshes the dataset publishes, in their own pale band. This was the first skeletal region here to carry anything other than bone, and the full skeleton now does the same with its intervertebral discs and membranes. They were left out of the first version on the principle that the site shows bone, and the result looked broken rather than incomplete: every rib ended in mid air a long way from the sternum and the front of the cage read as a rendering fault. The dataset publishes the first to seventh individually on each side plus one further mesh per side that it simply calls the costal cartilage, and all of them are here. Hide the band to see what the bone alone looks like.
